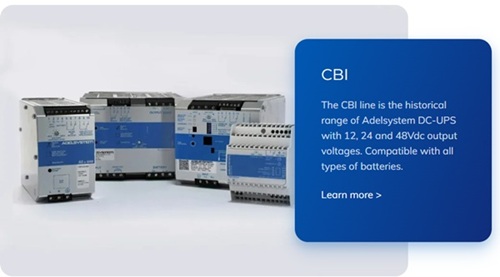

DC UPS - CBI Series

The CBI DC UPS combine the functions of a Power Supply, a Back Up Module and of a Battery Charger in one unit. They use switching technology with microcontrollers and optimise the supply to the DC load either when the AC mains is present or when the battery backup is in operation. The CBI units do not allow for deep discharge of the batteries.  The CBI units switch from the mains to the battery in the event of a mains failure without any interruption.DC UPs cbi series Adel

There is automatic protection without fuse against the reserve polarity, short circuit and overload and overvoltage. They carry out diagnostic checks on the connected battery through the Life Test, every 110 minutes, enabling the users to select the most appropriate charging curve to maximise the efficiency of the system and to guarantee a long-life battery while intensifying its performances.
They are equipped with two relays; one to operate to indicate the status of the mains or battery back up and another to indicate any of the 8 battery protection functions that the unit monitors.

The primary function of the CBI unit is to optimise the battery condition so when it is required the battery is as good as its life cycle will allow for. There are options for communication via CANbus and MODbus on certain modules and the DYP351 displays allows on the CBI500W and the CBI280 series an option for a door mounted display for battery status updates locally. All units are DIN Rail mounted and there is a range of battery carriers available to safely and easily fit the battery packs into the enclosure or panel.

Details on Battery Modules battery modules

Main features:
Output: 12, 24, 48Vdc, in case of fault in the mains
Output In: 2,5A ÷ 20A, in case of fault in the mains
Automatized repartition of the available power between the battery charge and re-charge functions, up to the double of the power value available at the charge output regarding to the input current
Visual signals for "Main no-voltage"; "Battery fault"; "Low battery signal - capacity less than 30%"; "Battery charge mode"; "Help through blinking code signal"
Signalling relay with voltage-free NO-NC output terminals for "Main or Back-up" and "Battery faulty/flat
3 charging modes: "Boost"; "Trickle", "Recovery in case of completely flat battery"
Self-diagnostic function: "High voltage at battery ends"; "Open or sulphated battery"; "Inverted battery connection"; "Possible short-circuited element"; "protection against short-circuit"
Set to manage "Boost" and "Trickle" charge from remote control
Accessories on demand: external temperature probe for voltage compensation; voltage drop compensation; remote display LED panel
Ambient temperature operating field: -25 ÷ 70° C
IP20

Single-Phase Input 115 - 230 - 277 Vac - Output 12 or 24 Volts - Dual Voltage Data Sheet Drawings
NEW ►   CBI 2801224A 115-230-277 Vac 280 W DC-UPS - CBI Series DC-UPS - CBI Series

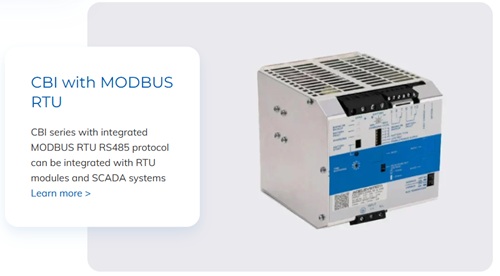

NEW ►   MODbus Data     DC-UPS - CBI Series
Single-Phase Input 115 - 230Vac - Output 12Vdc
CBI 123A 115/230Vac 3A DC-UPS - CBI Series DC-UPS - CBI Series
CBI 126A 115/230Vac 6A DC-UPS - CBI Series DC-UPS - CBI Series
CBI 1210A 115/230Vac 10A DC-UPS - CBI Series DC-UPS - CBI Series
CBI 1235A 115/230Vac 35A DC-UPS - CBI Series DC-UPS - CBI Series
Single-Phase Input 115 - 230Vac - Output 24Vdc
CBI 243A 115/230Vac 3A DC-UPS - CBI Series DC-UPS - CBI Series
CBI 245A 115/230Vac 5A DC-UPS - CBI Series DC-UPS - CBI Series
CBI 2410A 115/230Vac 10A DC-UPS - CBI Series DC-UPS - CBI Series
CBI 2420A 115/230Vac 20A DC-UPS - CBI Series DC-UPS - CBI Series
Single-Phase Input 115 - 230Vac - Output 48Vdc
CBI 485A 115/230Vac 5A DC-UPS - CBI Series DC-UPS - CBI Series
CBI 4810A 115/230 Vac 10 A DC-UPS - CBI Series DC-UPS - CBI Series
Redundancy Decoupling Module
MR220 10-60V DC 12, 24, 48V DC up to 25A DC-UPS - CBI Series power supply
Drawings: .stp, .igs, .dwg formats are available on request



DC-UPS CBI Series
Operating Manual Powerpoint Presentation Catalogue Video: How the Battery Start Function Works Video: CB2801224A
