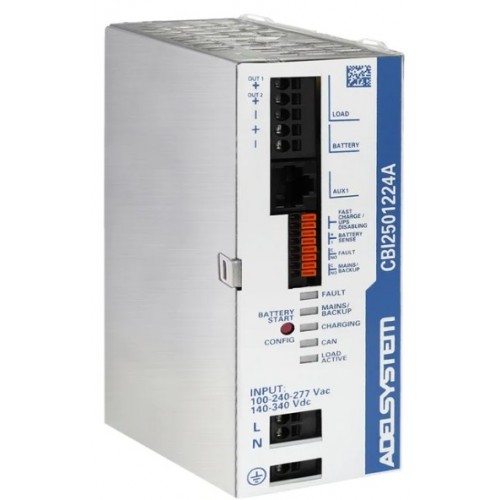

DC-UPS with Battery Start function with and Modbus communication Input: 110-240-277Vac - 140-340 Vdc Output 250W - Model CBI2501224A
Price: £410.00
The CBI series with integrated MODBUS RTU RS485 protocol can be connected to RTU modules and SCADA systems, providing easy access to battery status, DC-UPS functions and all application data.
The CBI2501224A combines the functionality of a power supply, backup, battery charger and tester in a single module only 50mm wide:
-
Selectable load output: 12 Vdc 12 A o 24 Vdc 10 A
-
Wide input voltage range: 100–277 Vac e 140–340 Vdc
-
Modbus RTU RS485
-
Charging profile for Lead, GEL, AGM, Li-Ion and LiFePO4
The Push-In connectors reduce wiring time while maintaing maximum safety.
